EZ-Set Auto Jigging
Automatic Truss Jigging System to drastically reduce setup times on tables that conventionally yield 100% embedment on the table but have previously been limited to only manual jigging and/or laser projection.

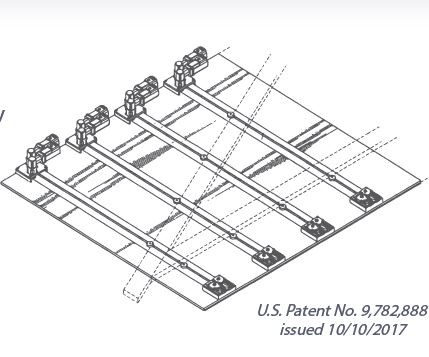

The standard version is like most conventional automatic jigging systems, housing drive components under or within the table, but the TopSider puts things right on top, on the peak side of the table.
The TopSider version design is exclusively applicable for “kick-leg or ip-leg” style truss and component presses such as the Tri-Axis & Lumbermater®.
- Capacity for 100%
- Nail Plate Embedment
- Top & bottom chord stops in the same slot
- 24" or 30" O.C. Spacing
- Compatible with all current major design software

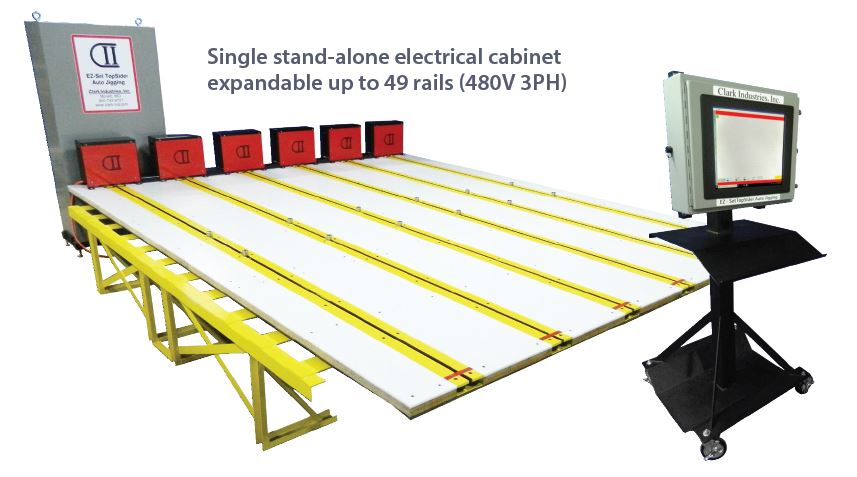

- Standard or TopSider Configurations
- Conventional kick-leg or walk-thru tables and our new trackless 8' and 10' continuous table systems
- Available in new machine installations or retro-fit applications on your existing table baseplate.
- Systems for other roller & hydraulic gantries are coming soon.
