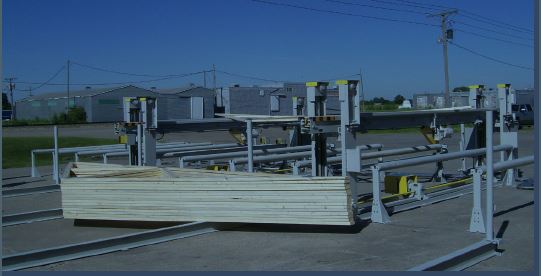

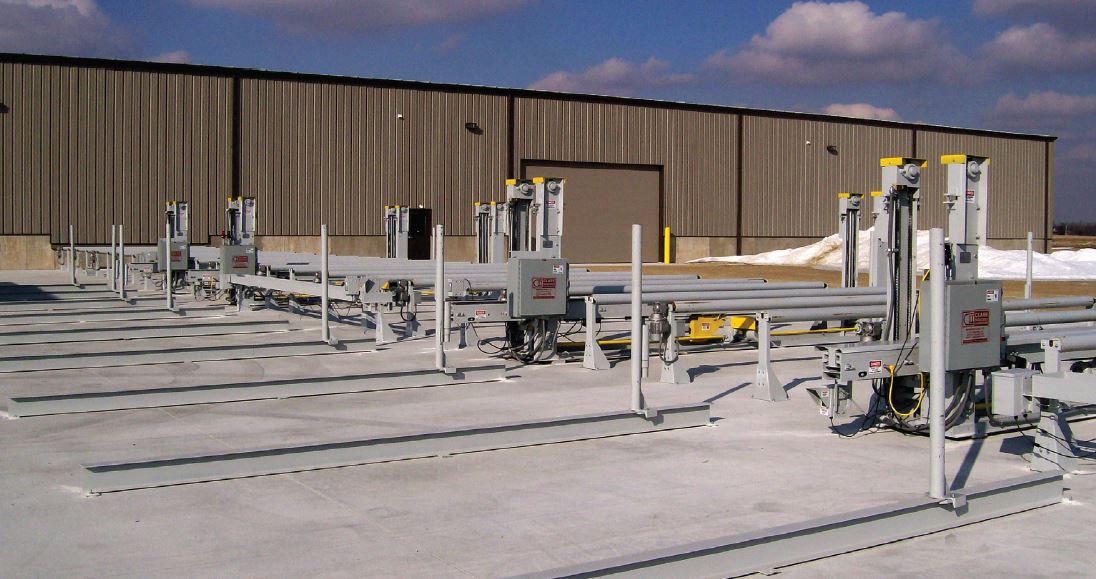

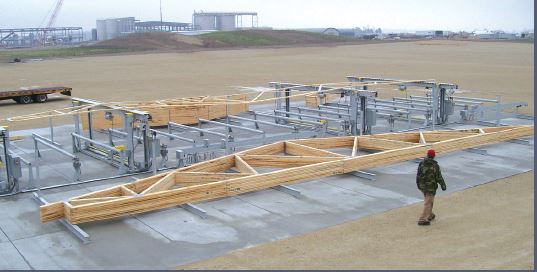

Fully Electric Dual Side Horizontal Truss Stacker
CII’s Fully Electric Dual Side Horizontal Stackers allow trusses to be stacked to both sides of the conveyor system. We utilize a non-scissor lift, fully electric design to work in extreme conditions. Lasers are utilized for our non-mechanical, end-of-truss and stack height sensing as well as for conveyor traffic control. A variety of options are available to suit your particular needs such as 2, 3, 4, 5, and 6 head systems to handle a wide range of truss sizes & your desired number of truss stacks. Contact us today for your stacking needs.
- Maximum truss length is unlimited.
- Standard system handles trusses up to 14’ in depth (up to 16’ is optional).
- Versatile, programmable, stack selection.
- Stack height can be set for specific applications.
- Stacking capacity is 30 trusses.
- Stacks to both sides of conveyor (2, 3, 4, or more stacks).
- Stacking units are typically grouped in pairs of units based on truss length (2, 3 or 4 arm systems are available).
- Stacking units are electronically linked.
- Interfaces with the conveyor system to sense trusses and activate the stacking sequences.
- Cycle time of approximately 40 seconds• Electronic panel display indicates condition of stack and diagnostics.
- Adjustable vertical stripping posts for “peak-in” or “peak-out” stacking control.
- Fully electric drive, no hydraulics
- Inverter driven horizontal frame for smooth acceleration and deceleration with regenerating breaking• Chain driven, PLC controlled, vertical and horizontal motion
- Dual, manual and automated, electrical controls with remote control
- Efficient design minimizes “working” and “wearing” components
- Sealed roller bearing cam followers
- Standard “off the shelf” components
- Low maintenance
