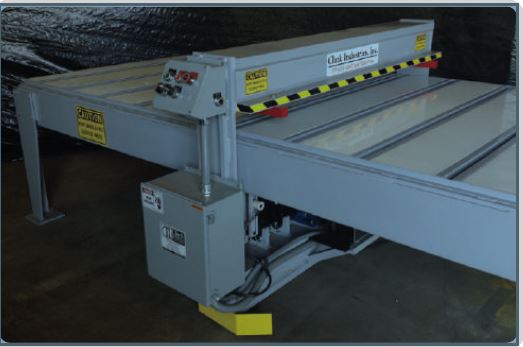

Jack Table Multi-Component Press

Need a safer & more efficient means of making jack trusses or just a little more production capacity? CII’s Jack Table Press is the solution. Standard machines feature 30 Tons of force while 30/50 and 30/60 Ton models are also available. Rest assured you’ll achieve 100% nail plate embedment on the table. Machines are capable of 2x, 3x, & 4X dimensional component production and available in 4', 5', 6', and 7' widths and lengths up to 24'.

  • 30T pressing head
  • 100% on-the-table nail plate embedment
  • 7-1/2 HP Hydraulic Power Unit (208/230/460)
  • Joystick controlled left/right operation
  • Two-Button safety hand control for pressing cycle
  • Minimum installation required
  • Press 2x, 3x, & 4x dimensional trusses
  • Dual Pressure Systems
  • 30/50 Ton System (10HP)
  • 30/60 Ton System (10HP)
  • 4FT, 5FT, 6FT, or 7FT Wide
  • 20FT or 24FT Long
  • HD Jigging Bars & Hardware
